Diagnostics & Stability-Test Card

Patent License NO.03126857.9. (Certificate No. 208776)

Diagnostics & Stability-Test Cards are latest invention of QiGuan Electronics Co., Ltd. According to its name, you'll see that diagnostics & stability-test cards have mainly two functions: Troubleshooting and stability test.

Qualities and Features

1. Features of Stability Test

1) It's simple to identify the test result-red indicator light means "unstable" and green indicator light means "stable". When the "red" and "green" flashes alterniatively and quickly, the Diagnostics & Stability-Test Card is testing the stability.

2) Diagnostics & Stability-Test Card can tell you whether your computer is stable or not, no matter you computer works now stably or unstably. And it also can help find the factors, not matter they are invariable factors or variable factors such as occasional and invisible potential factors.

3) It works more efficiently and stably than traditional PC Diagnostic Card. It never stops in testing.

4) It is independent of the Reset Signal of the test computer, so the abnormal reset logic of the test computer will not influence the test. It can correct failures and prevent pulse loss automatically. Resetting the test computer during testing will not influence the stability test.

5) It is independent of Windows System or other software, and it is able to troubleshoot even the screen is blank.

6) Unprecedented compatibility. It is compatible with all kinds of high, middle and low classes of motherboards in the market, and shows more accurate failure codes. There is even no exception for Intel 9XX series that represent the mainstream of top motherboards (such as SIS671) which can not be tested by the traditional PC diagnostic card.

7) It is good helper to choose quality computers and computer accessories, e.g. memory banks, hard disks, keyboards, and even the external equipments such as UPS, printers and computers used for ATM. And it also can help the sellers sell their computers by proving the stability.

2. Features of Troubleshooting

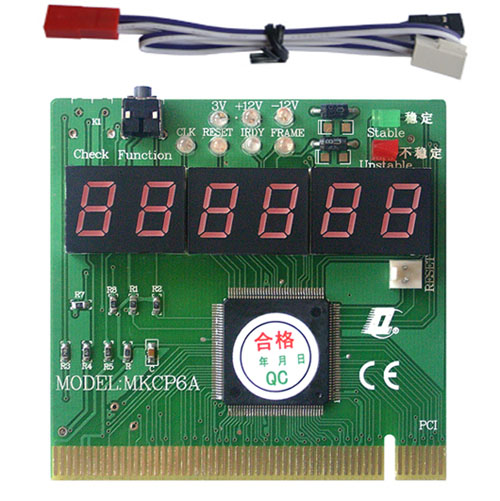

1) There are two digit display, four digit display and 6 digit display for your option.

2) There are Reset indicator, CLK indicator, 3V indicator, +12V indicator and -12V indicator The Reset indicator and CLK indicator have been compeltely upgraded. The CLK indicator is 100% correct and will not mislead the users. The users can see the clock pulse fluctuation clearly, even the single 10ns clock pulse. The CLK indicator will be off when there is no CLK signal impulse, no matter the current signal stays at high or low level. No pulse loss, no unwanted pulse.

3) Thoroughly eliminated random initial code that mislead the user in troubleshooting.

4) It can troubleshoot the failures from the motherboard even without CPU.

5) Functional limitation of traditional PC Diagnostic Cards has been broken, e.g. we have created standard PCI interface and varieties of auxiliary parts that enhance the accuracy and reliability of PC Diagnostic Cards. And part of its functions depend on BIOS no more, and never limit to POST contents and manners of BIOS.

6) Support 80h, 84h, 300h port.
