PC Motherboard Analyzers

New PC and Laptop Motherboard Diagnostic Test Cards Kit (STC-SP+LMC8)

Price:
$28.20/ £19.90
Shipping costs:
All parcels come with tracking numbers. US addresses, parcels will be sent in USA. Other countries, items will be sent by either Standard (STD) or Express carrier (EXP) such as DHL/FEDEX/UPS...etc. International order, CONTACT PHONE NUMBER IS NEEDED for carrier. Please leave the phone number when making the Paypal payment. Parcels will be sent to the Paypal address. International Express shipping method take about 3 business days. The standard international shipping method takes few more days.
Buy options:
Buy from my eBay Stores:

Video Demo:
Description:



This is a new nice complete PC and Laptop Motherboard Diagnostic Repair Analyzer Test Cards Kit



Great for the desktop PC and laptop motherboards quick repairs!



No need to taking the computers apart and no need to swap known good parts in the PC and laptop diagnosis

Automatically scan the motherboard for the faulty components

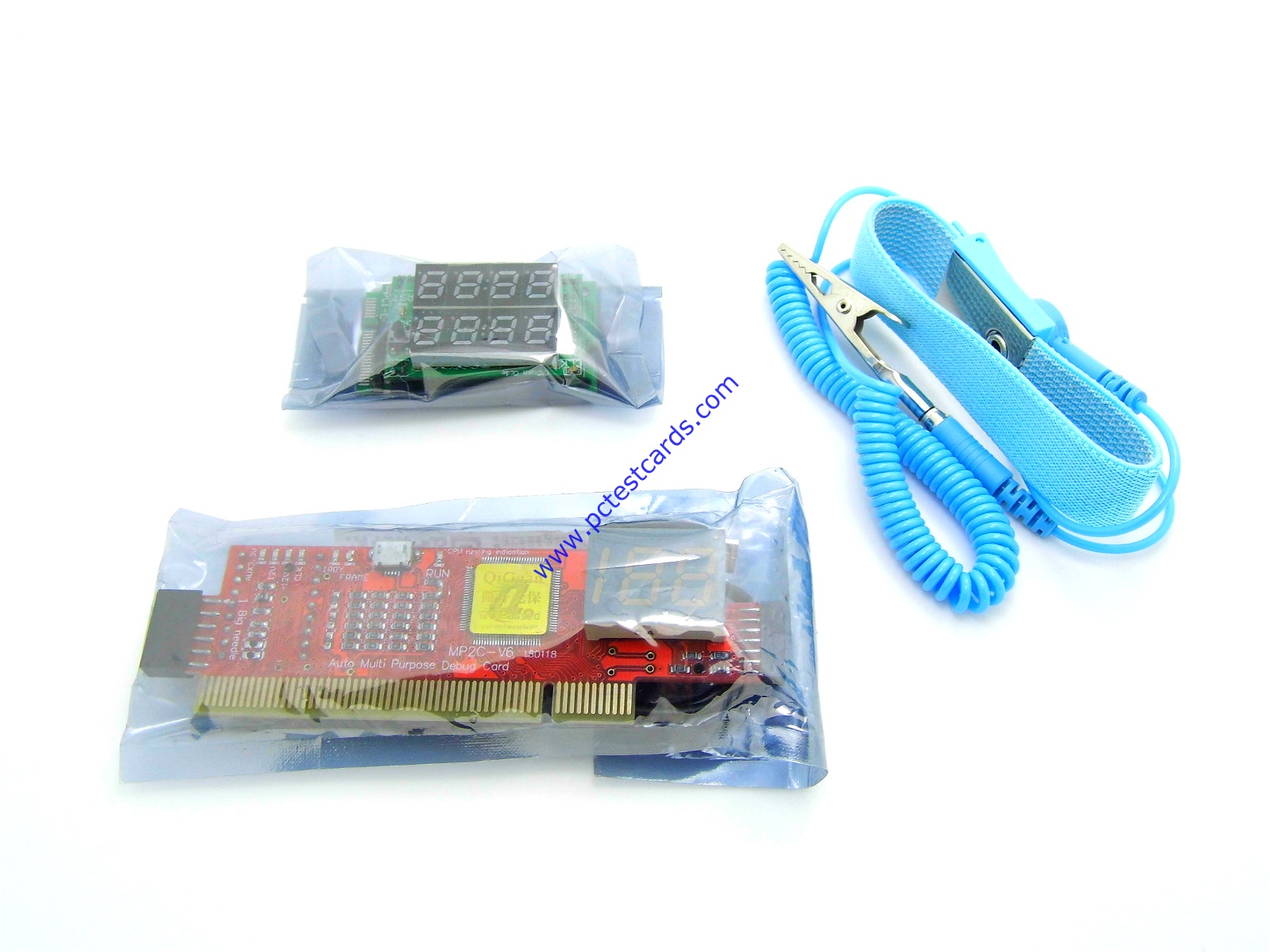

This kit consists of the following 4 new items:


  • 1 x Dual Side display 2X2 digital v6.0 new Desktop PCI and LPC motherboard diagnostic POST debug analyzer test card


  • 1 x Laptop 8digit miniPCI / miniPCIe and LPC motherboard diagnostic POST debug analyzer test card


  • 1 x Corded ESD Anti Static Wrist Band Strap


  • 1 x MicroUSB cable to work on the desktop Dualside display diagnostic test card





Features:

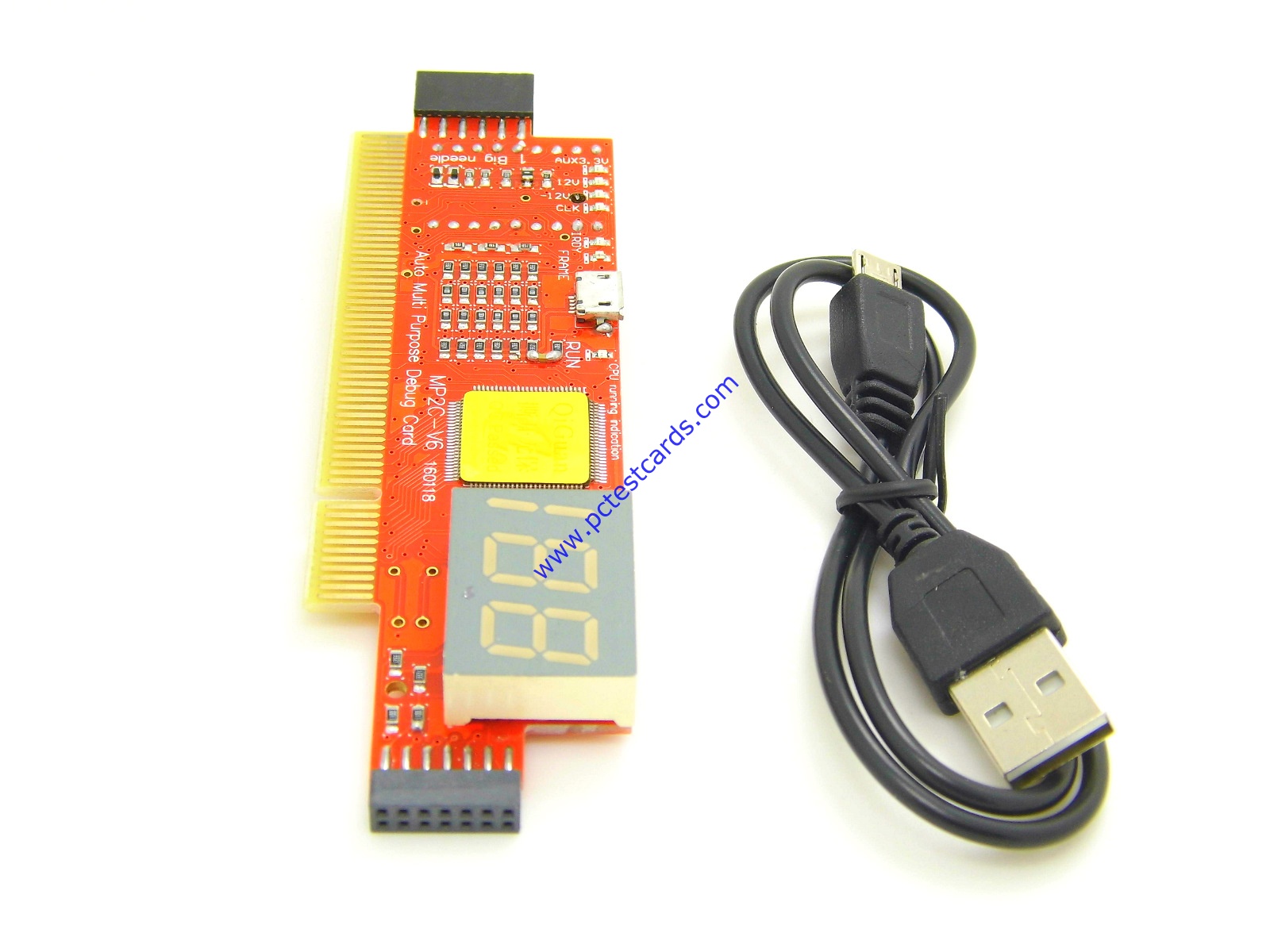

The 1st item: Dual Side display 2X2 digit v6.0 new Desktop PCI and LPC motherboard diagnostic POST debug analyzer test card


           Works on the desktop PC PCI and LPC as well as server computer PCI-X connectors.


Combining Digital and LED types of codes to provide the most effective and accurate desktop PC and Server computer hardware diagnosis


            Comes  with plenty of the LEDs such as the RST (check mobo chipset  reset  status), CLK, Frame, RUN (check CPU running status), IRDY,  AUX3.3v, 12v,  -12v ... etc. to show the motherboard working activities.

            When  using the LPC advanced diagnosis, we will need to connect the microUSB  cable (included) to the same laptop USB port.

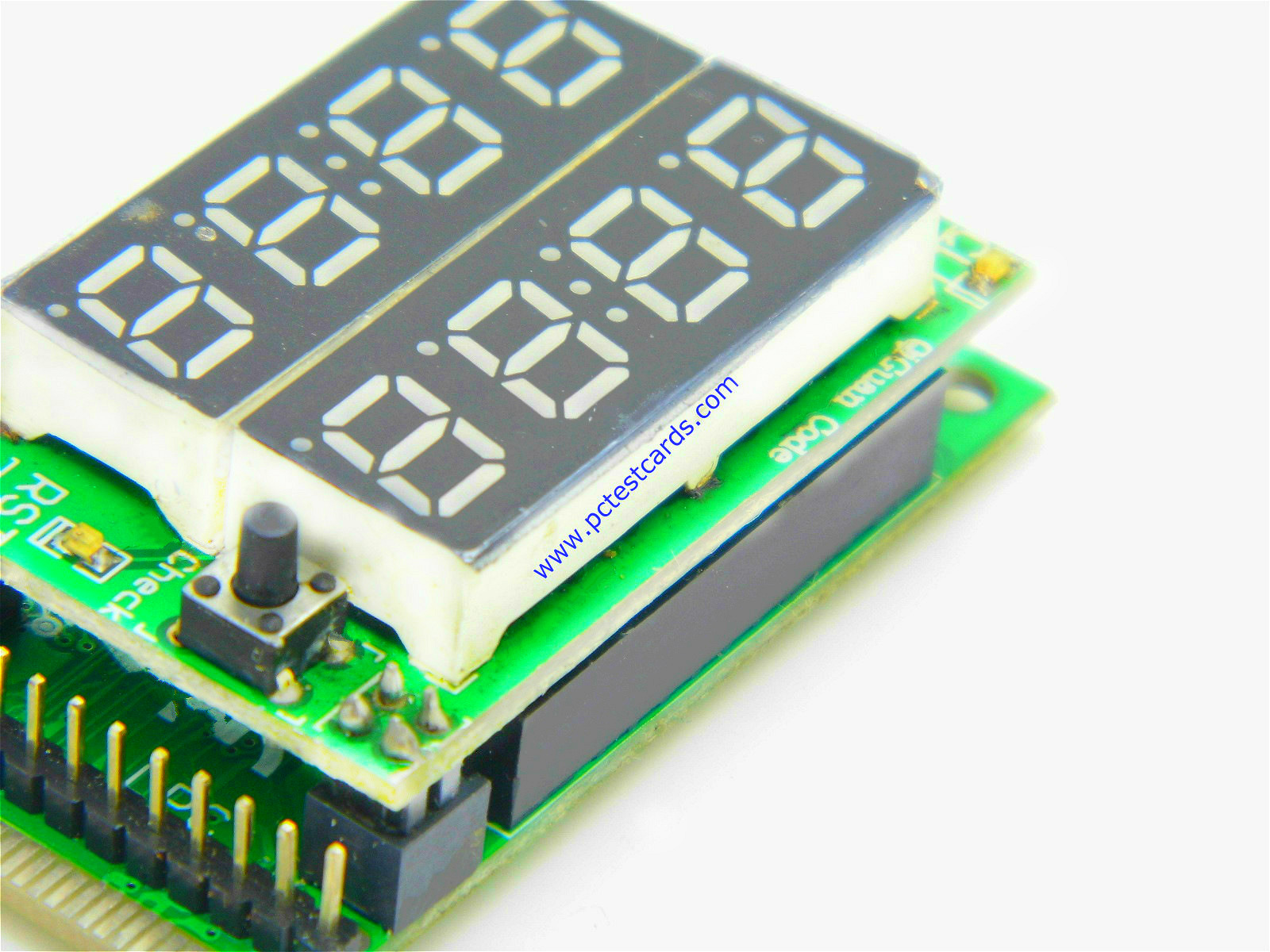

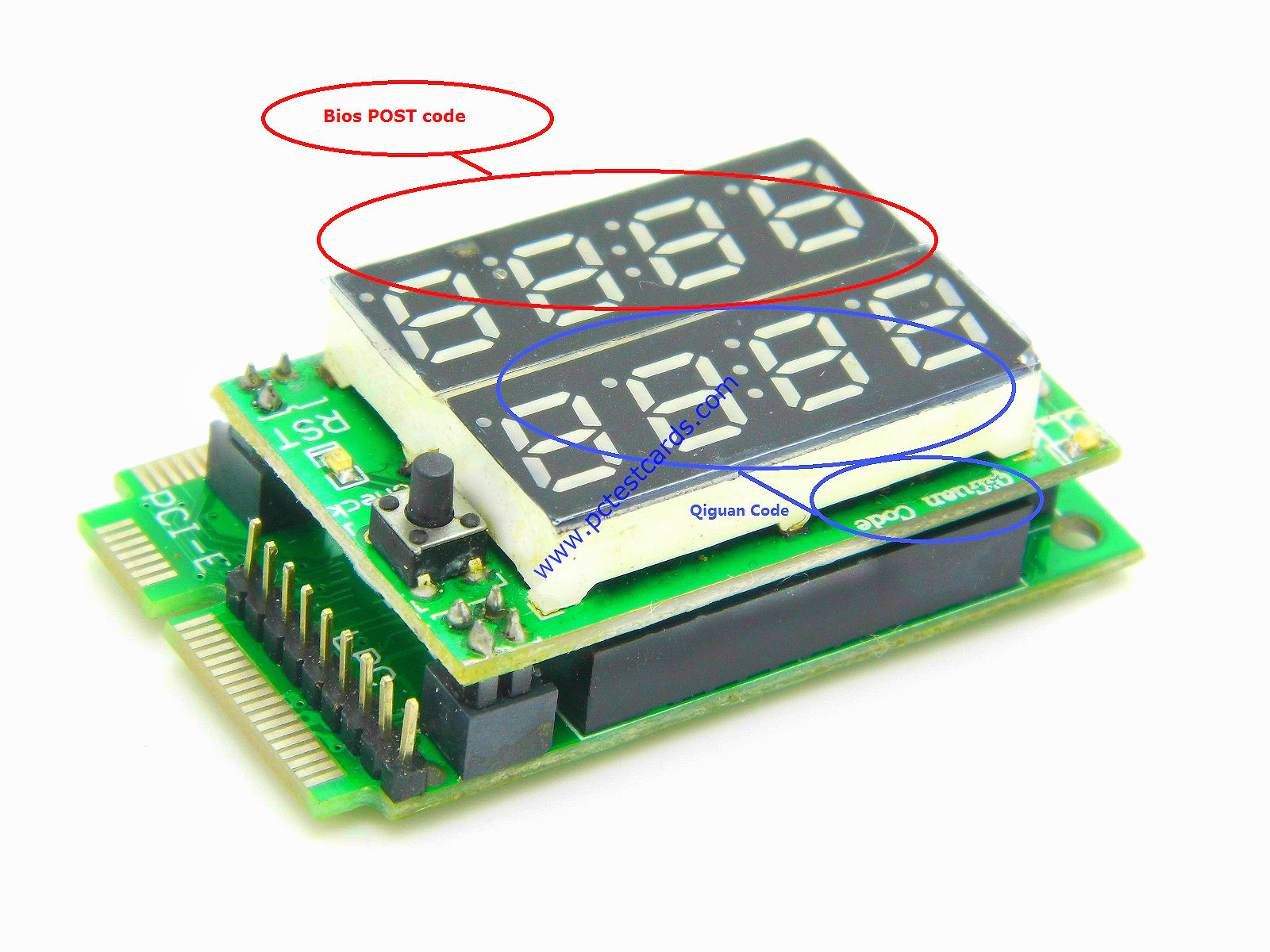

·           The 2nd item:      Laptop 8digit miniPCI, miniPCIe motherboard diagnostic POST debug analyzer test card


Also uses both Digital and LED codes to provide the easy laptop diagnosis without taking the laptops apart.


Allow multiple connection to the different laptops by using the laptop PCI(miniPCI),PCI expressed (PCIe) and LPC connections.



NO need to take the whole laptop apart, save time and hassles of dissembling the laptops to diagnose.

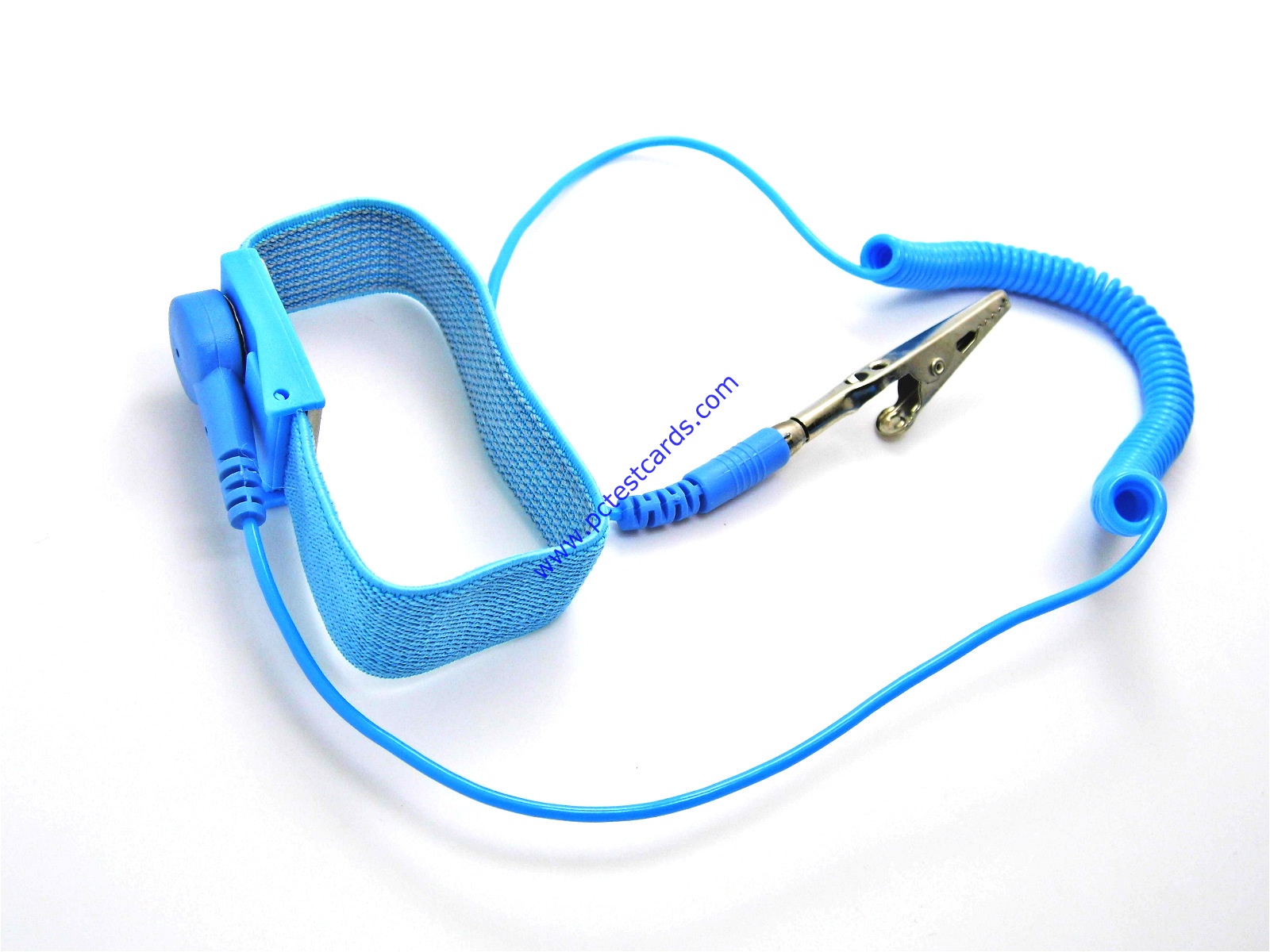

The 3rd item: Corded ESD Anti Static Wrist Band Strap is nice and essential to wear during the computer hardware repairing process.

Help to discharge the statics very quickly (in millisecond)

Just wear the strap on my wrist and catach the other end of the "crocodile jaws" to the grounding sources.
Then we are free to move the parts on the computers.

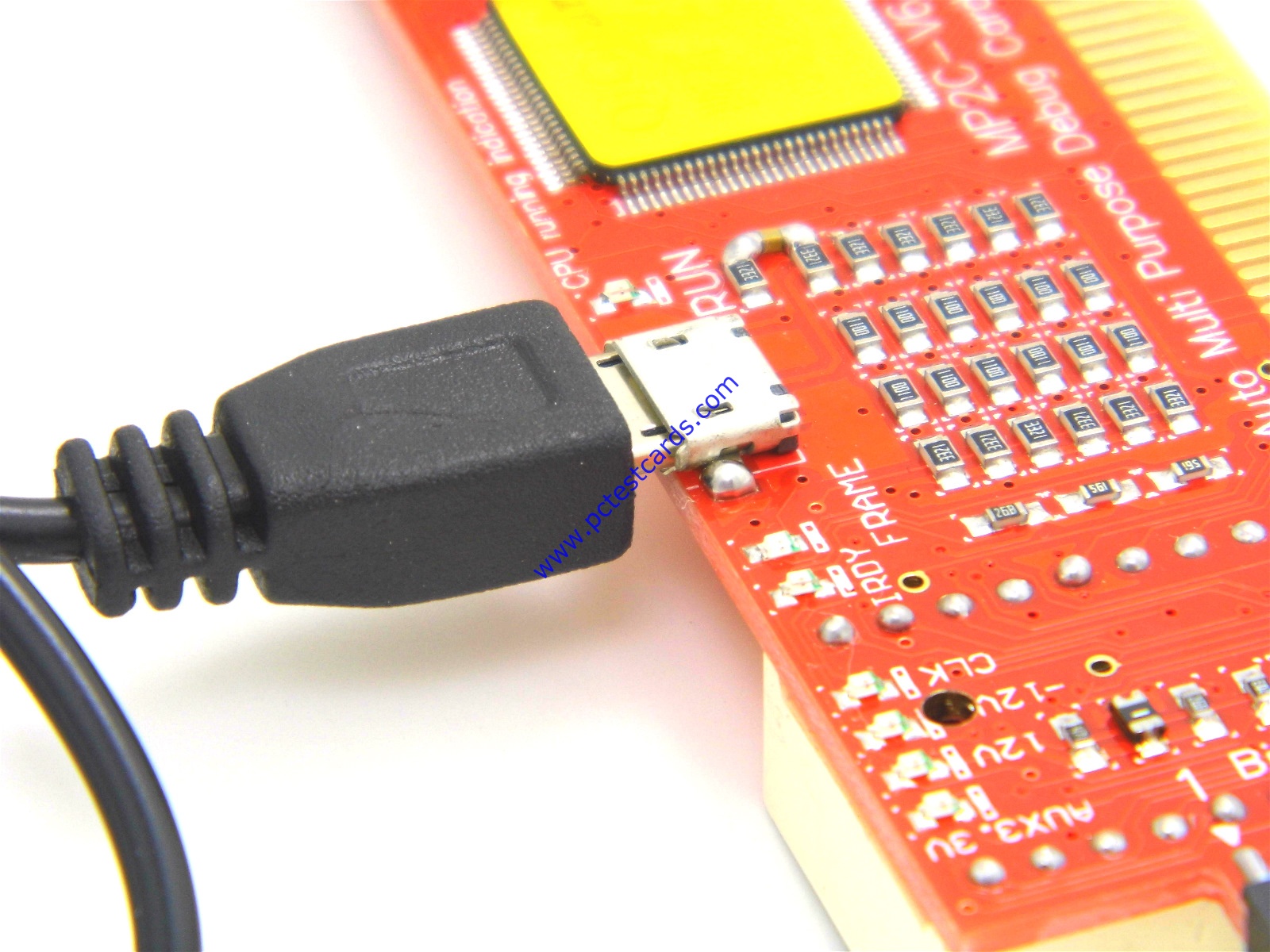

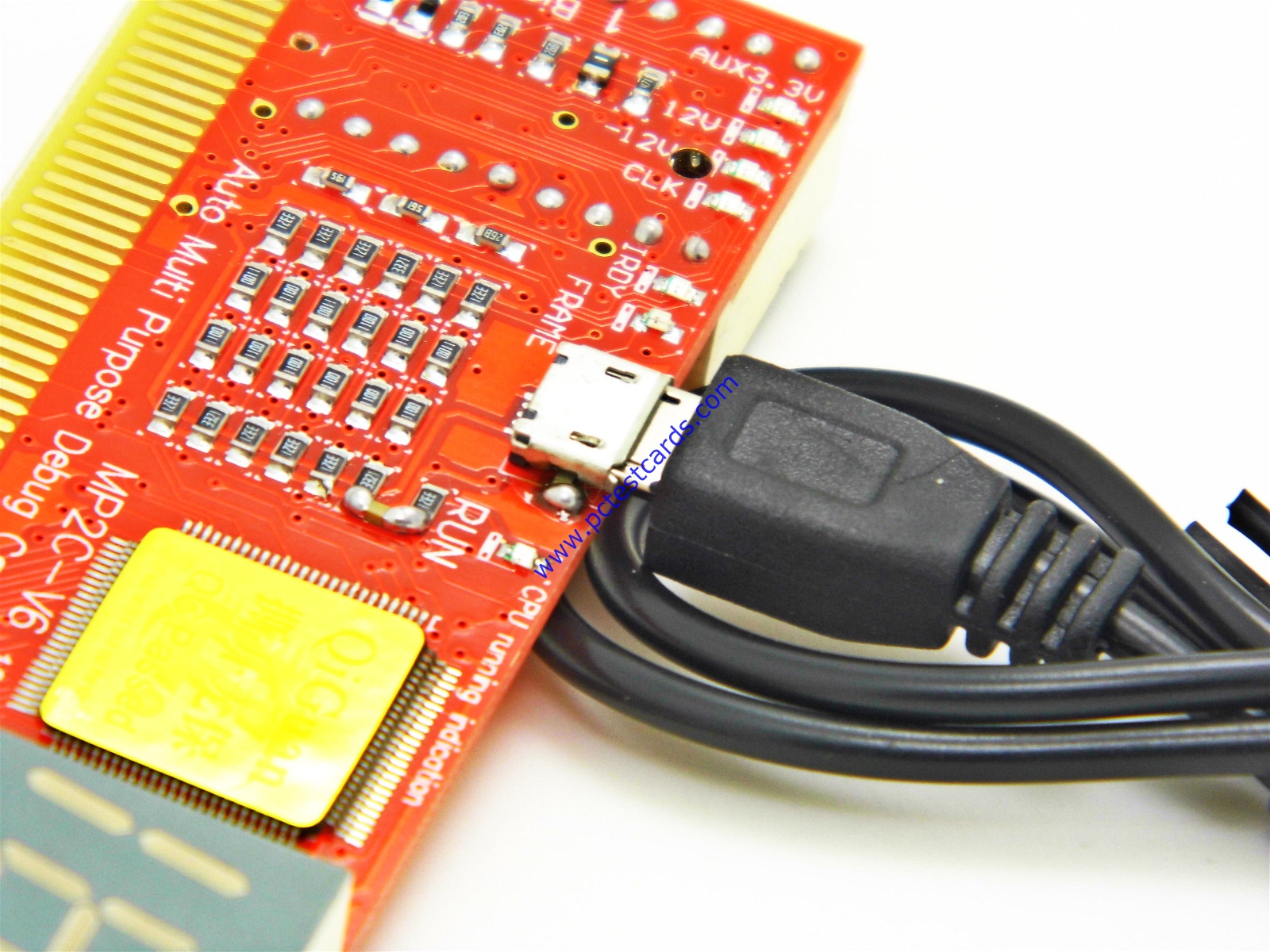

The 4th item: the microUSB cable is need to connect to the desktop PC test card when using the diagnostic card LPC diagnosis. When using the other connectors to test the PC, this  USB cable need not to connect to the test card.



How to use:



This kit is used to help troubleshooting the PC and laptop hardware easily and quickly

NO need to taking the computers apart or swapping costly known good parts



On  desktop PCs, just install the diagnostic test card to the PC standard  PCI connector, no need to connect the USB cable to run the diagnosis.

Besides  the PCI connection, we can also connect the diagnostic card LPC  connector to the motherboard LPC debug port. When using the LPC  connector to test the desktop PC, we must connect the USB cable to the  test card as well. The other end of the USB cable must connect to the  same computer USB connector.

After this, we can install the diagnostic test card to the motherboard LPC debug port pins, then power on the PC as usual.

The test card will auto scan the motherboard for us.



On laptops, we should use the smaller 8digit diagnostic card in this new diagnostic test kit.
Just swap the laptop WIFI card with the small 8digit laptop diagnostic card.
Most  laptops are having the miniPCI or miniPCIe WIFI connector, we need to  use the corresponding connectors on this nice laptop 8digit diagnostic  card to test the laptop.



After  installing the diagnostic card on the laptop WIFI connector, please  powering on the laptop as usual, the test card will auto scan the laptop  motherboard for the faulty parts.

Error   codes will be generated on the faulty computers, and then we can refer   to the manual and easy guide to interpret the codes easily.


Please see the manuals for the easy steps of these connections and more pictorial instructions with the codes descriptions.

Again,   this is a new nice great complete test kit set for both desktop PC and   laptop computers self quick diagnosis and motherboard hardware   troubleshootings!



Nice and essential tool kit for computer owners, computer lab admins, PC technicians, new and used computers parts business traders to quick check the PC health conditions. Also a perfect kit for students taking computer classes!



Greatly reduce the PC laptop repairing costs!
Save hassles and time to take the computer apart in the troubleshooting process!
